Brand Name : PRIUS,XINYI or OEM
Model Number : LB
Place of Origin : Ningbo,China
MOQ : 5pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 20000pcs per month
Delivery Time : 10~15 working days
Packaging Details : bag+box+catons+pallet
Product Name : LB
name : Air Cylinder Accessories
Working Pressure : 1-9.0Kgf/cm²
Pressure : 13.50Kgf/cm²
Temperature Range : 0-70℃
Speed Range : 50~800mm/s
Buffer Type : Gasket Buffer/Adjustable Buffer
Port Size : M5X0.8/G1/8"

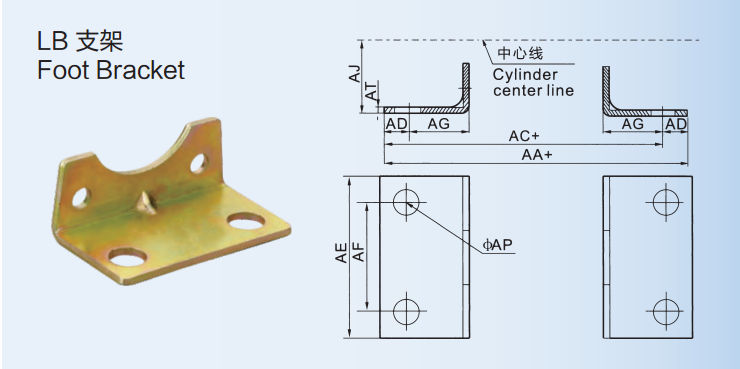

LB Foot Mounting Bracket , Standard Pneumatic Cylinder Accessories

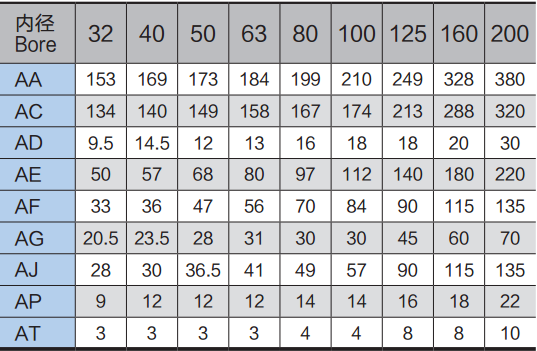

Specification
32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | ||
Bore | ||||||||||
AA | 153 | 169 | 173 | 184 | 199 | 210 | 249 | 328 | 380 | |
AC | 134 | 140 | 149 | 158 | 167 | 174 | 213 | 288 | 320 | |
AD | 9.5 | 14.5 | 12 | 13 | 16 | 18 | 18 | 20 | 30 | |
AE | 50 | 57 | 68 | 80 | 97 | 112 | 140 | 180 | 220 | |
AF | 33 | 36 | 47 | 56 | 70 | 84 | 90 | 115 | 135 | |
AG | 20.5 | 23.5 | 28 | 31 | 30 | 30 | 45 | 60 | 70 | |
AJ | 28 | 30 | 36.5 | 41 | 49 | 57 | 90 | 115 | 135 | |
AP | 9 | 12 | 12 | 12 | 14 | 14 | 16 | 18 | 22 | |
AT | 3 | 3 | 3 | 3 | 4 | 4 | 8 | 8 | 10 |
![]() |

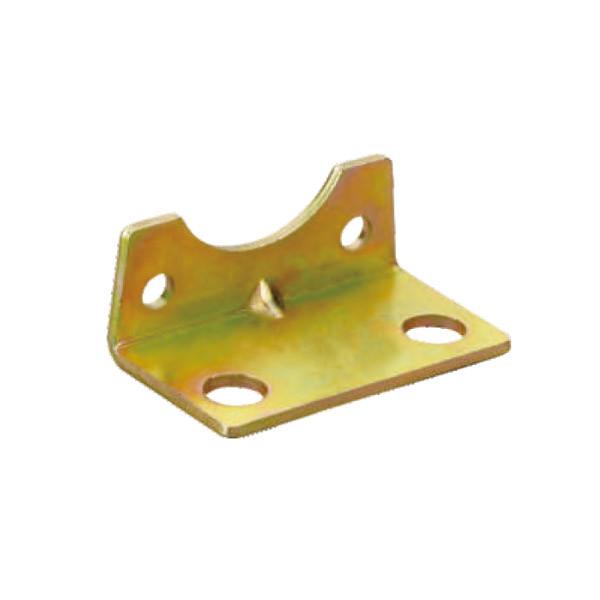

Gold Color LB Foot Mounting Bracket , Standard Pneumatic Cylinder Accessories Images |
